CT 44 – Window
Current Transformer CT 44 – Window IEC 60044-1
Sales Package:
- Terminal cover : 1 pcs
- Cover seal screw : 1 pc
- Mounting clad : 4 pcs
- QC sheet : 1 pcs
Specification
| Highest voltage for equipment Um (r.m.s.) | 0.72 kV |
| Rated power-frequency withstand voltage (r.m.s.) | 3 kV |
| Rated short-time thermal current (Ith) | 60 Ipn |
| Rated dynamic current (Idyn) | 2.5 Ith |
| FS | 5 |
| Class of Insulation | E |
| Rated frequency | 50 … 60 Hz |
| Working temperature | 0° … 50°C |
| Storage temperature | -10° C … +70°C |
| Relative humidity | 95% (non condensing) |
| Cable diameter | ≤ 28 mm |
| Case / Color | PC V0 / Black |
| Weight | 2570 gr |

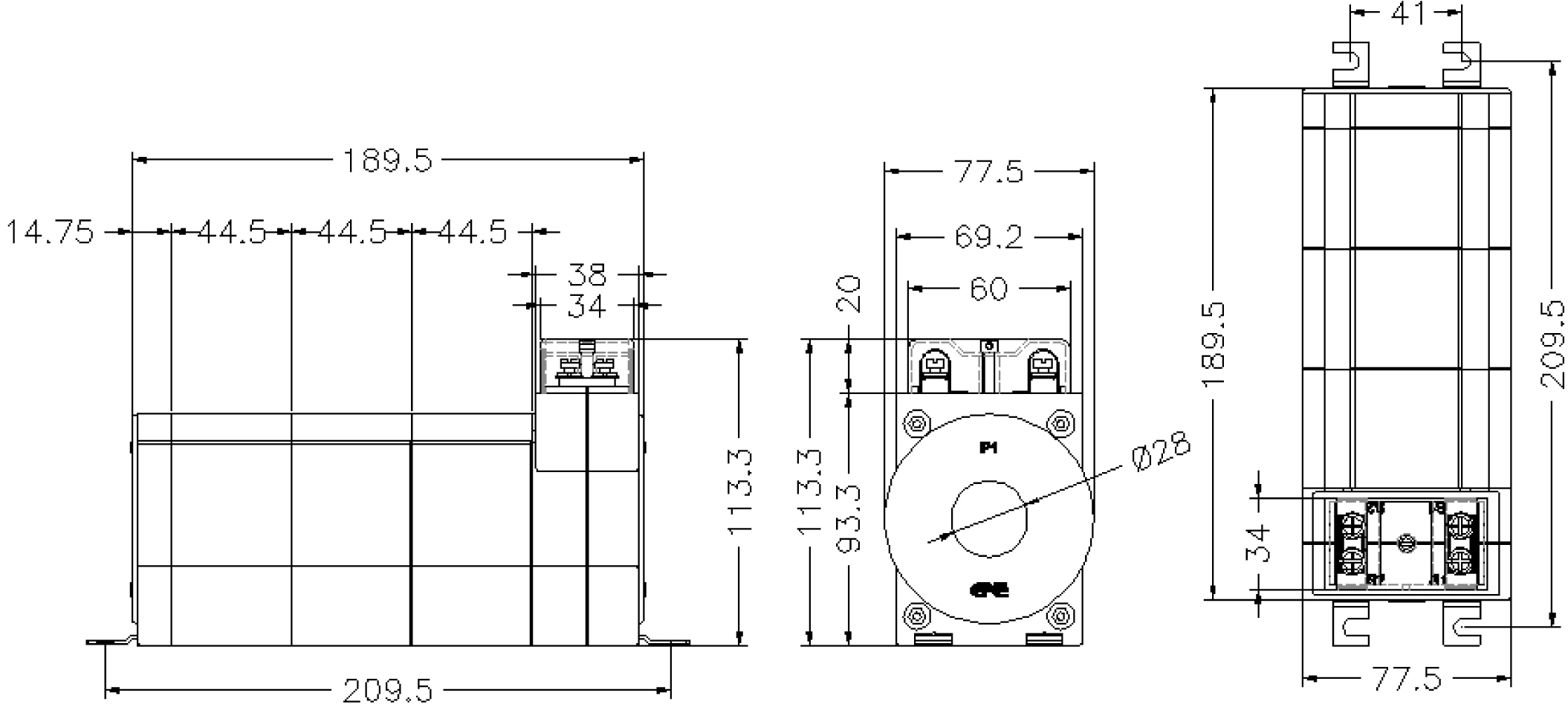

Dimension (mm)
Ordering Code
