CT 70 - Window
A completely enclosed of current transformer most appropriate for use in low voltage switchboard plats and key components in measurement system
Specification
| Highest voltage for equipment Um (r.m.s.) | 0.72 kV |
| Rated power-frequency withstand voltage (r.m.s.) | 3 kV |
| Rated short-time thermal current (Ith) | 60 Ipn |
| Rated dynamic current (Idyn) | 2.5 Ith |
| FS | 5 |
| Class of Insulation | E |
| Rated frequency | 50 … 60 Hz |
| Working temperature | 0 o … 50o C |
| Storage temperature | -10° C… +70° C |
| Relative humidity | 95%(non condensing) |
| Cable diameter | ≤ 28 mm |
| Bus Bar Size (h x w) mm | 5x10 … 12x40 |
| Case / Color | PC V0 / Black |
| Weight | 500gr |

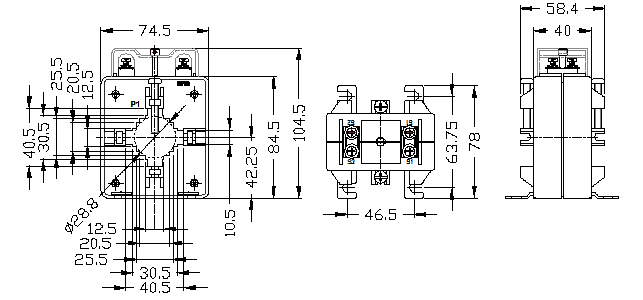

Dimension (mm)

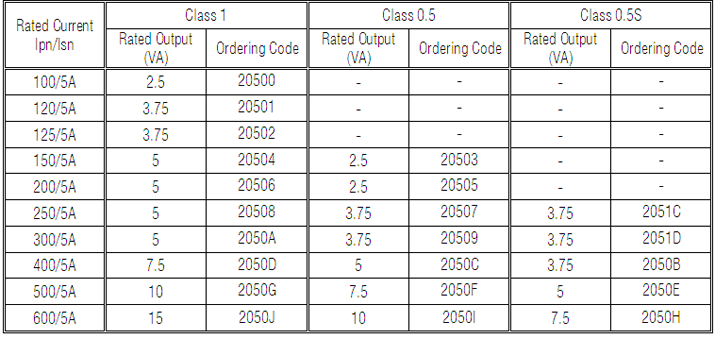

Ordering Code
