CT 72 – Window
Current Transformer CT 72 – Window IEC 60044-1 SPLN D3.014-1: 2009
Sales Package:
- Terminal cover : 1 pcs
- Cover seal screw : 1 pc
- Fastening screw (M5x40) + Nut M5 : 2 pcs
- Mounting clad : 4 pcs
- QC sheet
Specification
| Highest voltage for equipment Um (r.m.s.) | 0.72 kV |
| Rated power-frequency withstand voltage (r.m.s.) | 3 kV |
| Rated short-time thermal current (Ith) | 60 Ipn |
| Rated dynamic current (Idyn) | 2.5 Ith |
| FS | 5 |
| Class of Insulation | E |
| Rated frequency | 50 … 60 Hz |
| Working temperature | 0 o … 50o C |
| Storage temperature | -10° C… +70° C |
| Relative humidity | 95%(non condensing) |
| Cable diameter | ≤ 28 mm |
| Bus Bar Size (h x w) mm | 5x10 … 10x40 |
| Case / Color | PC V0 / Black |
| Weight | 650 gr …860 gr |

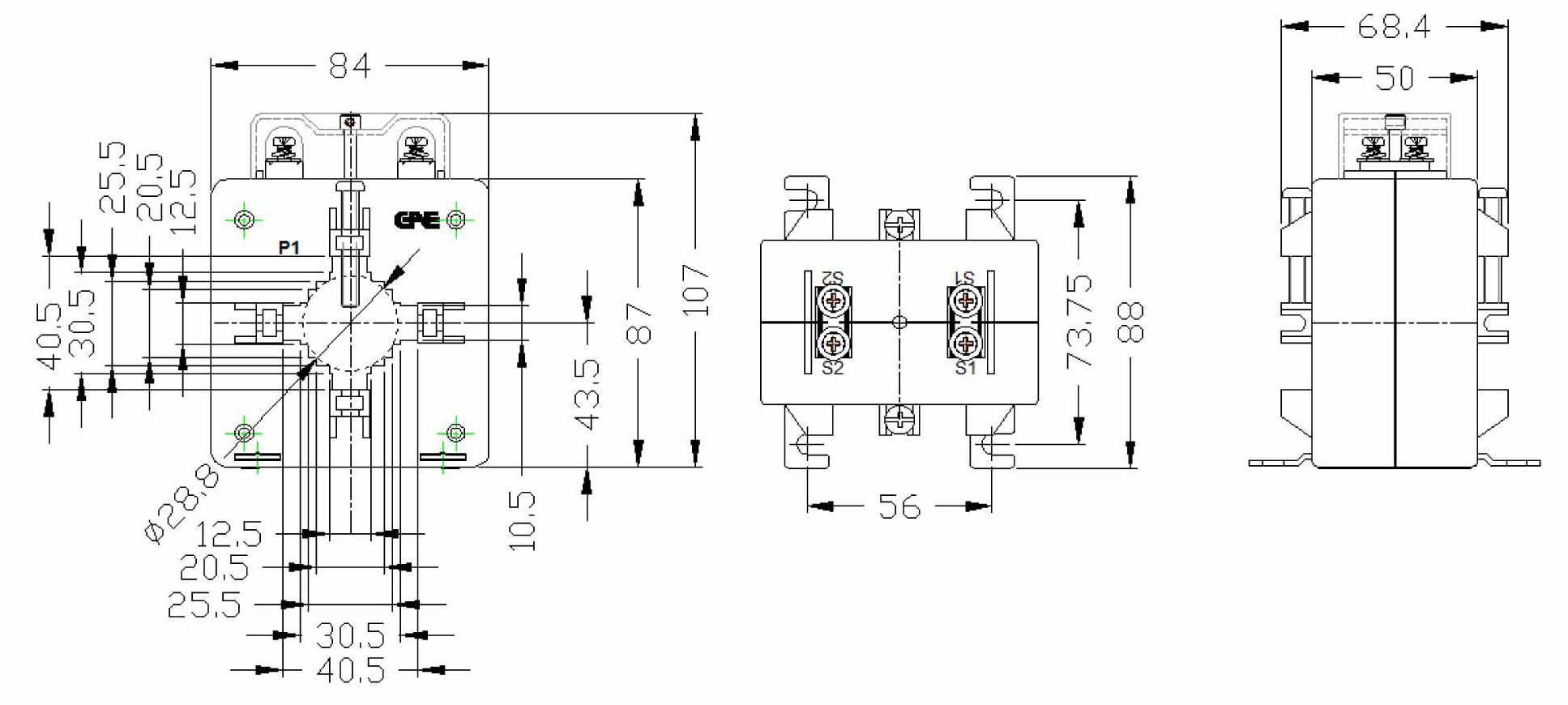

Dimension (mm)

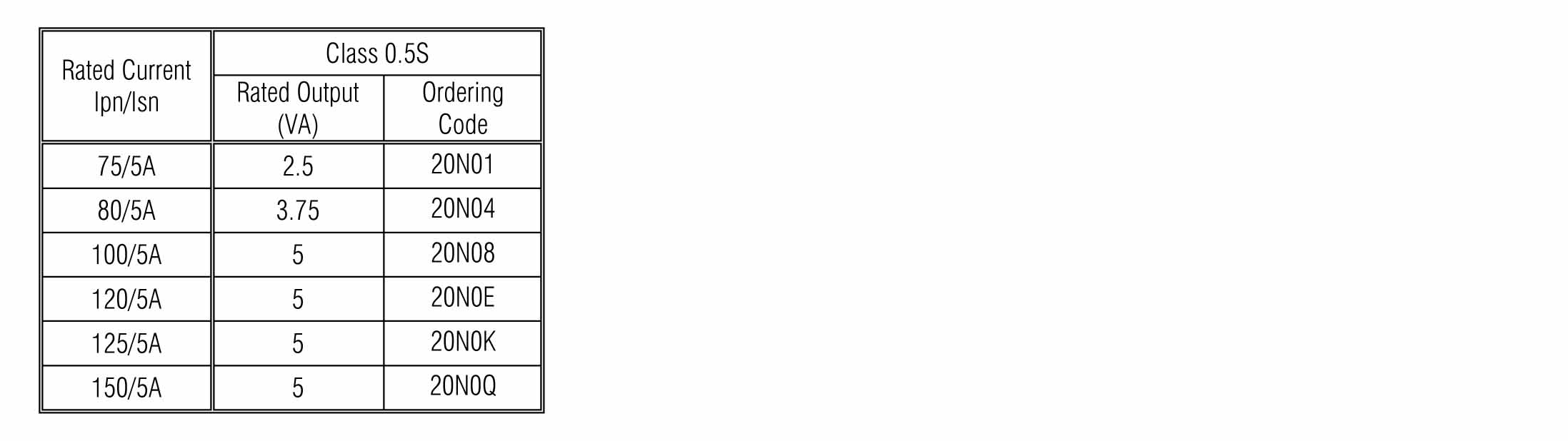

Ordering Code
